TS-20A Short Killer PCB Short Circuit Fault Detecting Machine Phone Repair Tool

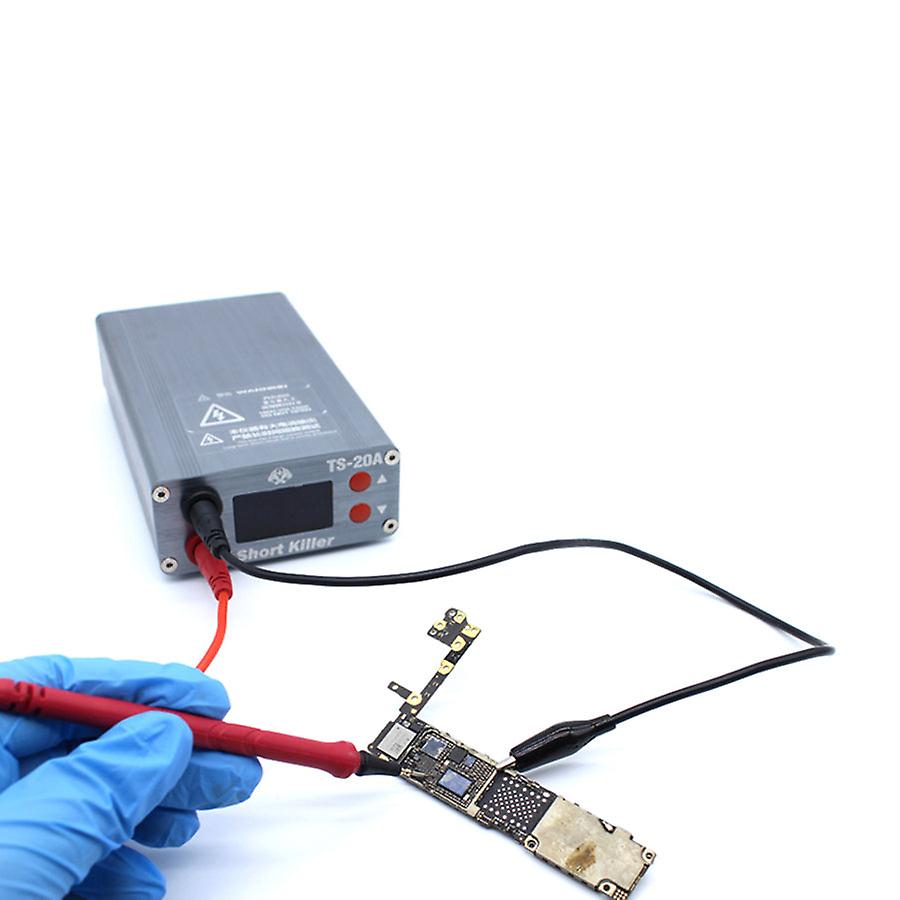

The TS-20A Short Killer is a specialized PCB short-circuit fault detecting machine widely used in mobile phone, laptop, and electronics repair. It helps technicians quickly and safely locate short circuits on logic boards without damaging components.

Here are the key details about the TS-20A Short Killer:

1. Main Features

• Short-circuit fault detection – pinpoints faulty areas on PCB (commonly used for phone mainboards).

• Low voltage, high current output – ensures safe testing without damaging ICs or board traces.

• Adjustable current range – allows you to set the right detection level for different devices.

• Over-current protection – prevents accidental damage during testing.

• Digital display – shows real-time voltage and current readings for accuracy.

• Compact & lightweight – designed for phone and small electronics repair benches.

1. Applications

• Mobile phone motherboard short-circuit detection.

• Laptop and tablet board repair.

• Locating faulty capacitors, ICs, or other components causing shorts.

• Testing PCB power lines for safe repair.

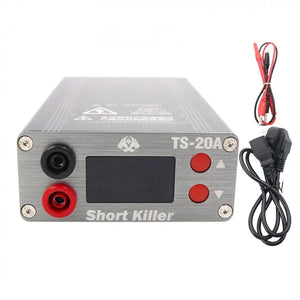

1. Package Typically Includes

• TS-20A main unit.

• Output cables with probes or crocodile clips.

• Power cable.

• User manual.
